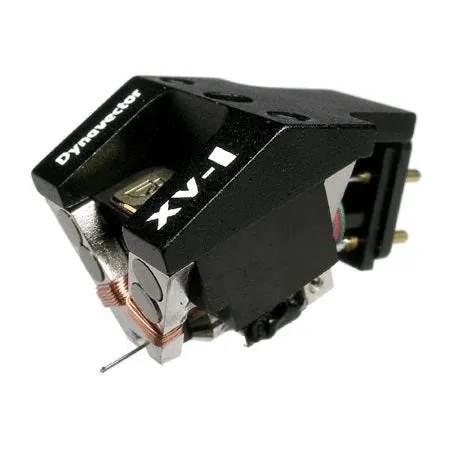

Dynavector DV DRT XV-1s Moving Coil Cartridge
The Dynavector DV DRT XV-1s is the latest addition to our elite range of moving coil cartridges. Drawing from the revered lineage of our original XV-1 cartridge, the XV-1s synthesizes advanced technology with committed craftsmanship to deliver an impressive sonic experience set to invigorate your vinyl records. Designed to imbue your sound equipment with the unforgettable raw ecstasy of vinyl, the XV-1s boasts a multi alnico magnet design and incorporates significant enhancements to the magnetic components and body parts, achieving remarkably crisp imaging and a seamless audio extension spread over the full frequency spectrum.
Product Features and Benefits:
Multi Alnico Magnets: We have incorporated 8 small Alnico magnets to ensure stability in the magnetic flux density between the front yoke and the equaliser component. Experience accurate sound reproduction with impeccable detail.
Magnet Stabilising Coils: Unique to the XV-1s, these coils wound on the front yokes enhance the balance of the sound character, maintaining a steady magnetic field and minimal magnetic shading.
Revolutionary Square-Shaped Design: This innovative feature aids in keeping the moving coil stable, resulting in smooth tonal transitions and precise imaging.
African Ebony Wood: Utilized as the material to stabilize the 's magnets, it imparts an opulent and balanced unique sound character.
Solid Boron Cantilever: The solid boron cantilever and line contact offer the utmost in musical detail extraction from the groove of the vinyl.
Reduced Output Impedance: With an impedance of 6 ohms, the XV-1s cartridge is conveniently compatible with most phonon stages or step-up transformers.
New Stylus Guard: To ensure the longevity of your cartridge, we have designed a new stylus guard that enhances the safe handling and protection of this delicate component.
Low Output Moving Coil: The XV-1s employs a low output moving coil design that reduces the noise floor and distortion of the vinyl reproduction.
Specifications
| Specifications | Description |
|---|---|
| Type | Low output moving coil cartridge with Multi alnico magnets and Flux damper |
| Output Voltage | 0.3mV (at 1KHz, 5cm/sec.) |
| Channel Separation | 30 dB (at 1KHz) |
| Channel Balance | 1.0 dB (at 1KHz) |
| Frequency Response | 20 – 20,000Hz (± 1dB) |
| Compliance | 10 x 10-6 cm/dyn |
| Tracking Force | 1.8 – 2.2 grams |
| Impedance | R=6 ohms, L=18 micro Henry |
| Recommended Load Impedance | > 30 ohms |
| Cantilever | 6mm length 0.3 mm dia. solid boron |
| Stylus | 0.14 x 0.08 mm Line contact PF |
| Weight | 12.6 grams |
| Other Features | African ebony wood, 30 micron PCOCC wiring coil, new stylus guard |
| Compatibility | Suitable with most phone stages or step-up transformers |
| Design Philosophy | Focus on vinyl-enjoyment, indifference to changing digital formats |
In conclusion, the DV DRT XV-1s Moving Coil Cartridge is a sonic revelation, unlocking vinyl's intrinsic musical richness with impeccable clarity, precision, and depth. Representing Dynavector’s relentless quest for optimum sound reproduction, this cartridge extends the frontiers of vinyl performance, rendering your kinship with your music collection stronger than ever. The DV DRT XV-1s isn’t simply a product, it's a pilgrimage into luscious, ungarnished audio fidelity, a tool to explore the untouched, authentic magic that vinyl brings to the palate of your ears. Experience an immersive auditory expedition that transforms not just your listening sessions, but your very relationship with music.
